Print Outputs

Matrices, panels and lists can be printed from OS 10.2 or better, using the Mac printer dialogues.

For sophisticated print preprocessing, tailoring or editing of printouts, Investigation Catalyst enables and recommends the use of specialized graphics or drawing applications capable of handling large graphics files. Export the matrixes as PNG or JPG files, then import them into qualifieed Mac or PC graphics or drawing applications for processing to your unique specifications.

Investigation Catalyst printouts

Investigation Catalyst provides for the printing of Matrixes you produce. The procedures are described below. Printing Matrices from Investigation Catalyst at less than 50% scale is not recommended, as type will be too small to read.

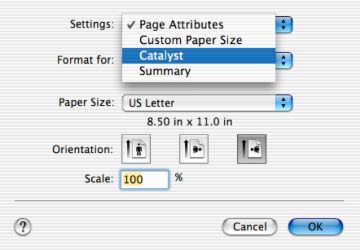

User may set size of printout by selecting Page Setup > Settings >and selecting Catalyst from the pull down menu:

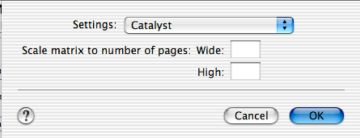

The Investigation Catalyst window will open.



specify how many pages wide the printout should be, or enter both width and height values, and press return or click on ok. the matrix will be printed in tiled pages.

Note: It is advisable to check the selection for legibility by previewing the printout from the Print menu before printing, which produces a PDF version of the printout. Reductions greater than 50% are likely to produce unsatisfactory prints.

Tailored or Edited Printouts

Investigation Catalyst is designed to accommodate sophisticated tailoring or editing of outputs by Mac and PC User's by using the Export Image function.

Export large matrices as PNG, or JPG files, then open those files with graphics management or drawing applications that can select areas to print, crop, enlarge, reduce, edit and print large charts.

For Mac users, GraphicConverter, a shareware application available at http://www.lemkesoft.com/ is highly recommended because of its superior graphics management capabilities and ease of use. For PC and Mac users, Canvas 9 is a very comprehensive and capable graphics application that , while somewhat more complicated to use, provides even greater flexibility for tailoring or editing matrix outputs with layering tools.

Large Printout Example.

Using GraphicConverter as an example, to print a large .png matrix file for assembly into a large display with tiled pages:
Launch GraphicConverter and open the .png fileApplication decompresses file and displays the full sized Matrix.
Select File>Print>Copies & PagesOpens Print panel and pulldown menu
Select GraphicConverter then select GraphicConverter Options... Printer setup panel with area, size, margin and other options appears
Select All Area, Original Size, Use printers minimum margins, center Position button and Print on more pages, then click OK OK returns you to the Print panel. These setting will produce a printout of the entire matrix on tiled pages that can be assembled into a large working display for meetings or group analyses
Select Preview in the Print panel This will generate a pdf file of each page that you can review to ensure that it looks as you intended. If the selected printer prints only black and white, the image will be in black and white; to view pages with color, deselect Soft Proof.
Preview print-ready configuration If not OK, repeat the process changing the selections to produce the desired output.
Select Print or Cancel View each page, then Print, or cancel to make changes.
Cropped Printout Example.

Using GraphicConverter as an example, to print a customized section of the Matrix for a report illustration,
Launch GraphicConverter and open the .png fileApplication decompresses file and displays the full sized Matrix.
Zoom out (to maximum of 50%) using scroll bars to display section of matrix you want to print Positions the desired section in the window for next step.
Select Edit>Smart Trim, and outline area of matrix to keep for the printout, then Edit>Trim Selection This removes everything except what was outlined for your to edit and print as desired.
Use Picture>Size to see the dimensions of the cropped area The dimensions enable you to calculate the settings for the printout, as above.
Preview print-ready configuration You may need to reorder the actors in the original matrix and repeat this process to get the EBs you want to display exactly right in one printout..
Use GraphicConverter or similar graphics applications to add special legends or pointers, move elements, and other modifications to exported Investigation Catalyst matrixes that are intended for publication.
